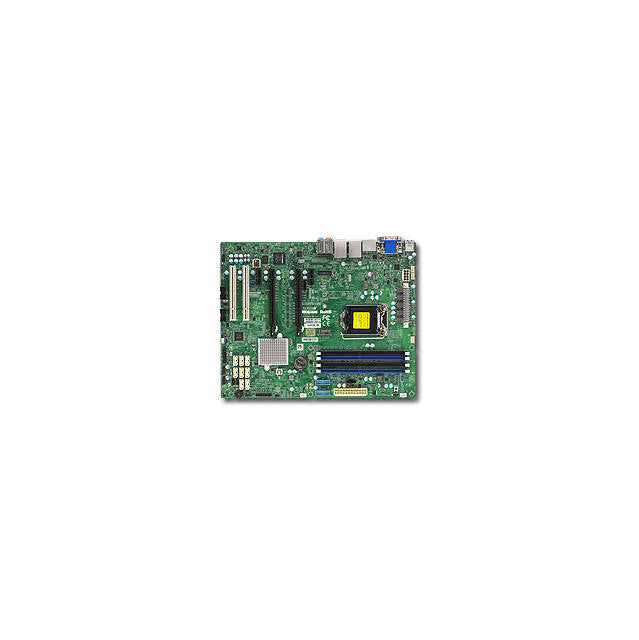

Supermicro X11SAE-F-O LGA1151/ Intel C236/ DDR4/ SATA3&USB3.1/ A&V&2GbE/ ATX Motherboard
Supermicro X11SAE-F-O LGA1151/ Intel C236/ DDR4/ SATA3&USB3.1/ A&V&2GbE/ ATX Motherboard
Out of stock
SKU:
Couldn't load pickup availability
Product description
Specifications
- Mfr Part Number: X11SAE-F-O
-
CPU: LGA1151
- Supports Intel Xeon E3-1200 v5 Processor
- Supports 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Support up to 95W TDP
- Chipset: Intel C236
- Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
- Slots: 2x PCI-Express 3.0 x16 Slots (run at 16/NA or 8/8), 2x PCI-Express 3.0 x1 Slots, 2x PCI Slots (5V, 32bit)
- SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10
- Video: ASPEED AST2400 BMC Graphics
- Audio: Realtek ALC888S High Definition Audio CODEC
- LAN: Intel I210-AT + Intel PHY I219LM Gigabit Ethernet Controllers
- Ports: 2x USB 3.1 Ports, 6x USB 3.0 Ports (2 rear, 4 via headers), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 1x DisplayPort, 1x DVI-D Port, 1x HDMI Port, 2x RJ45 LAN Ports
- Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 22.4 cm
- RoHS Compliant
