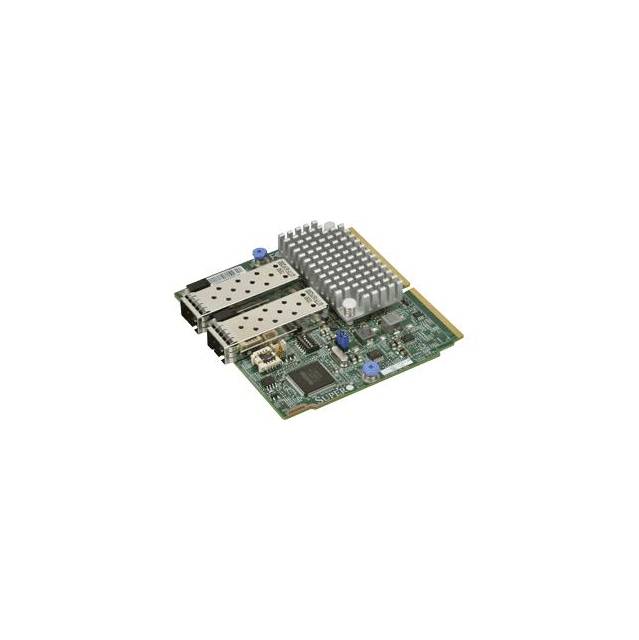

Supermicro AOC-MTGN-I2SM-O Dual-port 10 Gigabit Ethernet Adapter (for Twin Systems)
Supermicro AOC-MTGN-I2SM-O Dual-port 10 Gigabit Ethernet Adapter (for Twin Systems)
Out of stock
SKU:
Couldn't load pickup availability
Product description
Specifications
-
Mfr Part Number: AOC-MTGN-I2SM-O
-
Features:
- Dual SFP+ Connectors
- Super I/O Module (SIOM) Form Factor
- Intel QuickData Technology
- VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments
- Load Balancing on Multiple CPUs
- iSCSI Remote Boot Support
- Fibre Channel over Ethernet (FCoE) Support
- Support for most Network Operating Systems (NOSs)
- NC-SI for Remote Management
- RoHS compliant 6/6
- Supports both Direct Atttach Copper and Fiber Cables
- Dual SFP+ Connectors
-
General:
- Intel 82599ES 10GbE controller
- Super I/O Module (SIOM) Form Factor
- Dual SFP+ ports
- Load balancing on multiple CPUs
- iSCSI remote boot support
- Fibre Channel over Ethernet (FCoE) Support
- Intel PROSet Utility for Windows Device Manager
- Time Sync IEEE 1588
-
I/O Features:
- Direct Cache Access (DCA) to avoid cache misses
- MSI-X support to minimize the overhead of interrupts, allowing load-balancing between multiple cores/CPUs
- Tx/Rx IP, SCTP, TCP and UDP checksum offloading capabilities (IPv4, IPv6)
- Receive and Transmit Side Scaling for Windows environments and scalable I/O for Linux environments
-
Virtualization Features:
- VMDq, Next-Generation VMDq (64 queues per port)
- PC-SIG SR-IOV implementation (64 virtual functions per port)
- Advanced Packet Filtering
- VLAN support to allow creation of multiple VLAN segments
- VXLAN through Software
-
Manageability Features:
- Preboot eXecution Environment (PXE) support
- Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistics counters
- iSCSI remote boot
- NC-SI for remote management
- Asset Management support on Supermicro platforms
- Controller asset tags such as part number, revision, serial number, and MAC addresses
-
Advanced Software Features:
- Teaming support
- IEEE 802.3ad (link aggregation control protocol)
- IEEE 802.1Q VLANs
- IEEE 802.3 2005 flow control support
-
OS Support:
- Windows Server 2012 R2, 2012, 2008 R2 (x64 Edition)
- Windows 8.1, 8, 7 (x64 Edition)
- RedHat Linux
- SUSE Linux
- FreeBSD
- UEFI
- VMWare
-
Cables Support:
- SFP+ direct attach twinaxial copper cables up to 7m
- Fiber-optic cables (with required optional SFP+ transceivers)
-
Power Consumption:
- Typical power consumption - 6.2W
- Maximum power consumption - 7.2W
-
Physical Dimensions (L x H):
- Card PCB Dimensions (WxD): 3.62 x 3.43 inch / 92.0 x 87.1 mm
- RoHS Compliant
