Specifications

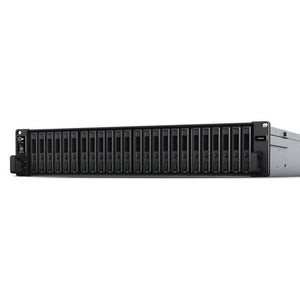

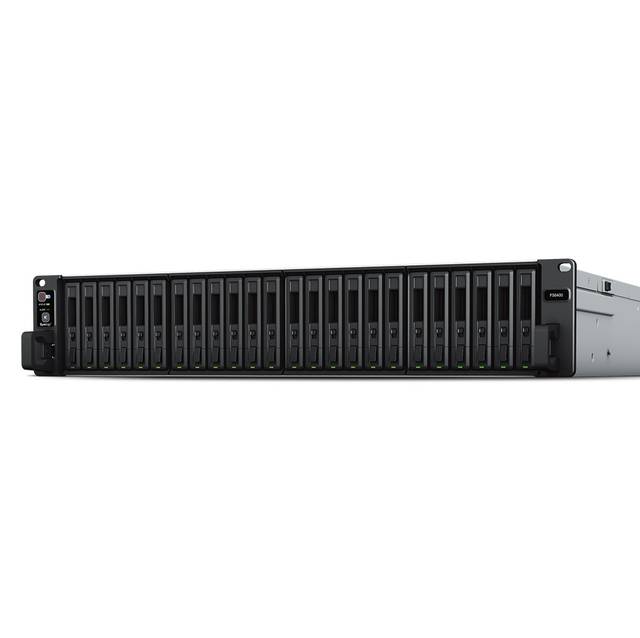

- Mfr Part Number: FS6400
-
Hardware:
- CPU: 2x Intel Xeon Silver 4110 8-core 2.1GHz, Turbo Boost up to 3.0GHz
- Memory: 32GB DDR4 ECC RDIMM (Expandable up to 512GB)
- Drive Bays: 24x 2.5" SAS SSD/ HDD or SATA SSD
- Max Single Volume Size: 200TB, 108TB
- Hot Swappable Drive
- External Ports: 2x USB 3.0 Ports, 1x Expansion port
- LAN: 2x 10GbE RJ-45 (10GBASE-T), 2x 1GbE RJ-45
- PCIe Slot for Network Card: 2 x 8-lane x8 slot, High-performance network interface card support
- System Fan: 4x 80 x 80 mm Fans
- Fan Speed Mode: Full-Speed Mode, Quiet Mode, Cool Mode
- Easy Replacement System Fan
- Power Recovery
- Noise Level: 55.4 dB(A)
- Scheduled Power On/Off
- Power Supply Unit / Adapter: 800W
- AC Input Power Voltage: 100-240V AC
- Power Frequency: 50/60Hz, Single Phase
- Networking Protocols: SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN , L2TP)
- Security: Firewall, encryption shared folder, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt support, HTTPS (customizable cipher suite)
-
File System:
- Internal Drives: Btrfs, EXT4
- External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT
-
File Sharing Capacity:
- Max Local User Accounts: 16000
- Max Local Groups: 512
- Max Shared Folder: 512
- Max Concurrent CIFS/AFP/FTP Connections: 8000
- Utilities: Synology Assistant
-
Applications:
- File Station: Virtual drive, remote folder, Windows ACL editor, compress / extract archived files, bandwidth control for specific users or groups, creating sharing links, transfer logs
- Backup tools: DSM configuration backup, macOS Time Machine support, Synology Drive Client desktop application Shared folder sync - maximum task number: 32
- FTP Server: Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL / TLS and SFTP protocol, boot over the network with TFTP and PXE support, transfer logs
- High Availability: Reduce service downtime by setting up two identical NAS into one high-availability cluster
- Security Advisor: Malware detection / removal, user account / password, network, system-related security scan
- Synology Drive: Provide a universal portal to synchronize your files across various platforms, including Windows, macOS, Linux, Android and iOS. The built-in universal portal allows you to access data anytime and anywhere
- Supported Clients: Windows 7 or above, Mac OS X 10.11 or above
- Power Consumption: 288.49W (Access); 145.80W (HDD Hibernation)
- British Thermal Unit: 984.37 BTU/hr (Access); 497.49 BTU/hr (HDD Hibernation)
- Certifications: EAC, VCCI, RCM, KC, FCC, CE, BSMI
- Dimensions (WxDxH): 430.5.0 x 692.0 x 88.0 mm
- Weight: 17.26 kg
- Package Contents: Main Unit, Accessory Pack, 2x AC Power Cord, Quick Installation Guide
- RoHS Compliant
